STANDARD WALLWASH RGB 10MM
The VERSA-LIGHT LED Range of products is a cost effective range of multi -purpose LED based products.

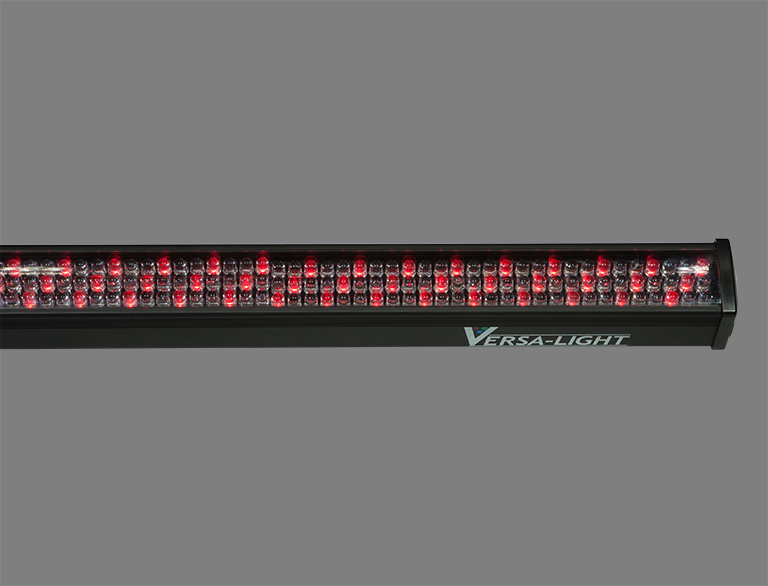

VERSA-LIGHT STANDARD WALLWASH RGB 10MM:
Is a multipurpose linear WALLWASH light that is suited for both installation and staging applications where a slim fixture is needed.
The Standard WALLWASH RGB uses 252 x 10mm LED’s. This configuration gives out a soft narrow beam of light output with smooth and even dimming to create a wide range of colours. The WALLWASH is divided into three RGB sections which are ideal to create rainbow effects and pixel mapped effects.
The unit can be used in both standalone mode or via the DMX512 Protocol and is equipped with 3 pin XLR connectors. A 7 segment display screen makes setup and control very easy. All units come with a pre-moulded 15A South African Plug top.
APPLICATION :
ENTERTAINMENT LIGHTING - THEATRE - STAGING - TV & FILM INDUSTRY
PRODUCT SPECIFICATIONS
| LED CONFIGURATION : | 252 LED’S ( 84 X RED, 84 X GREEN, 84 X BLUE) |
| LED SOURCE : | 10MM LED |
| BEAM ANGLE : | 35 DEG |
| RATED LIFE : | APPROX 50 000 HOURS |
| CONTROL : | DMX 512 |
| INPUTS/OUTPUTS : | 3 PIN XLR IN AND OUT |
| DMX CHANNELS : | 16 CHANNELS |
| STAND ALONE OPTION : | YES |
| DISPLAY : | 7 SEGMENT DISPLAY |
| STROBE FUNCTION : | 13 FPS |
| WEIGHT : | 2,2 KG |
|
MOUNTING OPTIONS : |
SELF STANDING ON 2 FEET OR TRUSS MOUNTED WITH CLAMP AND FOOT PLATE (NOT INCLUDED) |
| POWER CONSUMPTION : | 30W |
| SUPPLY VOLTAGE : | AC 90V - 220V 50/60HZ |
| DIMENTIONS : | 1070MM X 130MM X 130MM |
| FIXTURE COLOURS : | BLACK |
